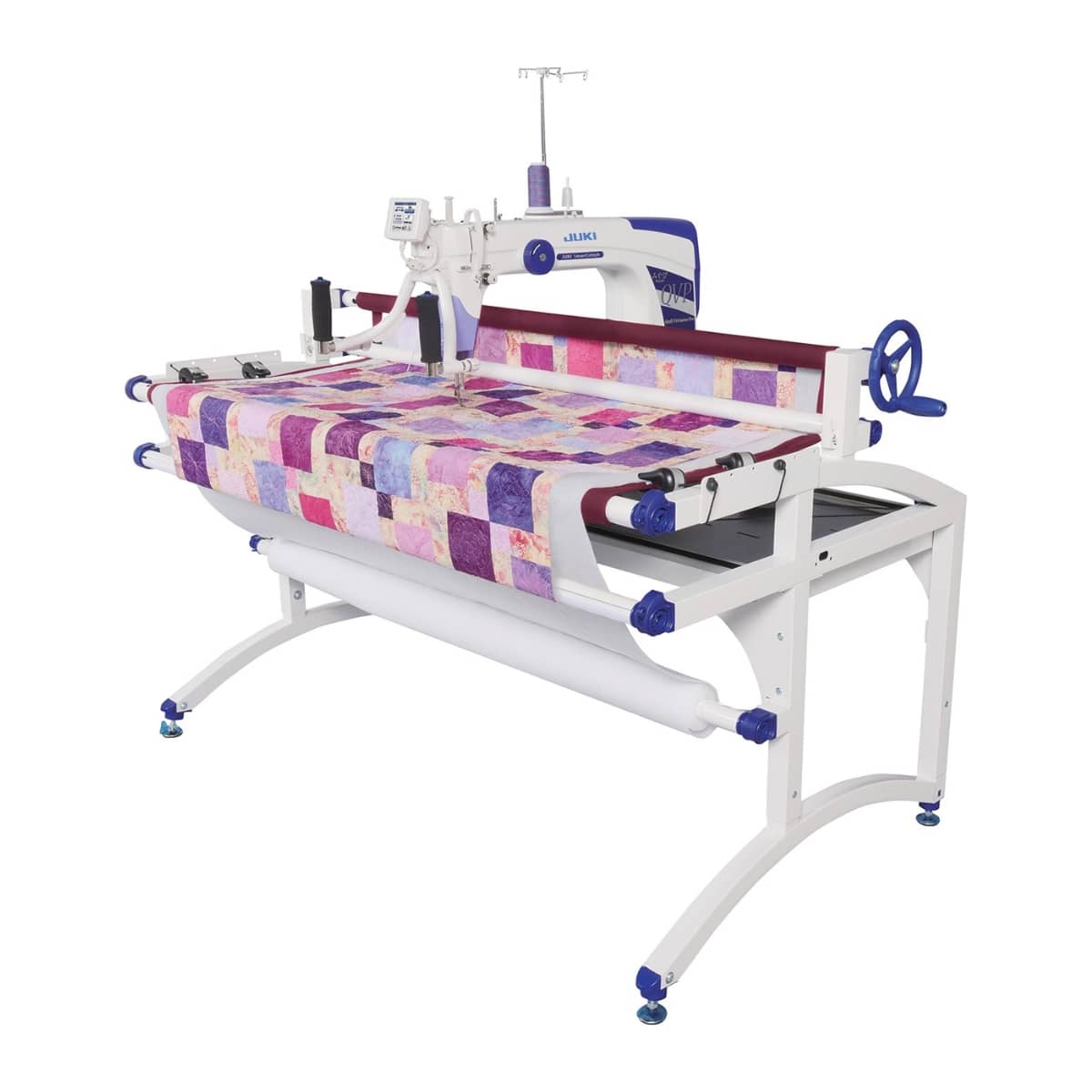

Juki Miyabi J-350QVP Quilting Machine – Multiple Frame Options

Specifications

• Sewing Speed: Max. 2,200 spm
• Needle bar stroke: 35mm
• Presser Foot Lift: 5.5 mm
• GB 134R
• Bobbin: Double capacity “M” style
• Drive System: Main shaft, direct drive
• Motor: AC servo motor
• Machine Weight: 26 kg (57lbs)
• Optional Extension: 400 x 855mm (15.7″ x 33.7″) each
• Machine Head Made in Japan by Juki

Direct Drive Technology

Direct drive motor allows for smooth, efficient operation while quilting. Low maintenance with hook oiling when needed. Industrial direct drive motor technology made in Japan.

Programmable LCD Touchscreen

Program your LCD screen to fit your quilting style. Program your preferred needle up or down positions, screen brightness, and foot pedal control.

Speed Regulation

Variable speed control with a maximum sewing speed of 2200spm with customizable speed control. Save your preferred settings for free motion, ruler work and micro stipples.

Directional Lighting

Dual directional LED lighting for bright, true white lighting of your quilting area.

Visibility

Greater visibility with 10″ high and 18″ throat space perfect for any quilt size.

Thread Stand

Built in dual thread stand to hold large quilting thread cones.

Automatic Needle Positioner

Needle position you can activate the up or down needle position for perfect stitching placement with either the left handle button or the LCD touch screen.

7JUKI SmartStitch: Stitch Regulator System Visibility

JSS makes it possible to produce accurate, precise stitching at any speed while quilting. When you select your stitch mode, the J-350QVP image sensors precisely read movement keeping stitch lengths perfect.

Foot Control

Electronic foot control with quick control thread cutting. Built in bobbin winder with independent motor and large M class bobbin.

Ergonomically Positioned Auxiliary Hand Wheel & Built-in Bobbin Winder

Convenient, easy reach hand wheel is located on the right side of the sewing head. The QVP’s bobbin winder operates with an independent motor. Full capacity M size bobbins filled with your favorite thread ready to complete your project.

Thread Cutter with auto set thread lock

Threads are automatically trimmed by push button with the exclusive Juki knife system saving time and increasing efficiency. Upper and lower thread cutter with auto set thread lock. Choose the preferred threads locks prior to auto cut or choose and auto thread pull to bring your threads to the top of your quilt.
